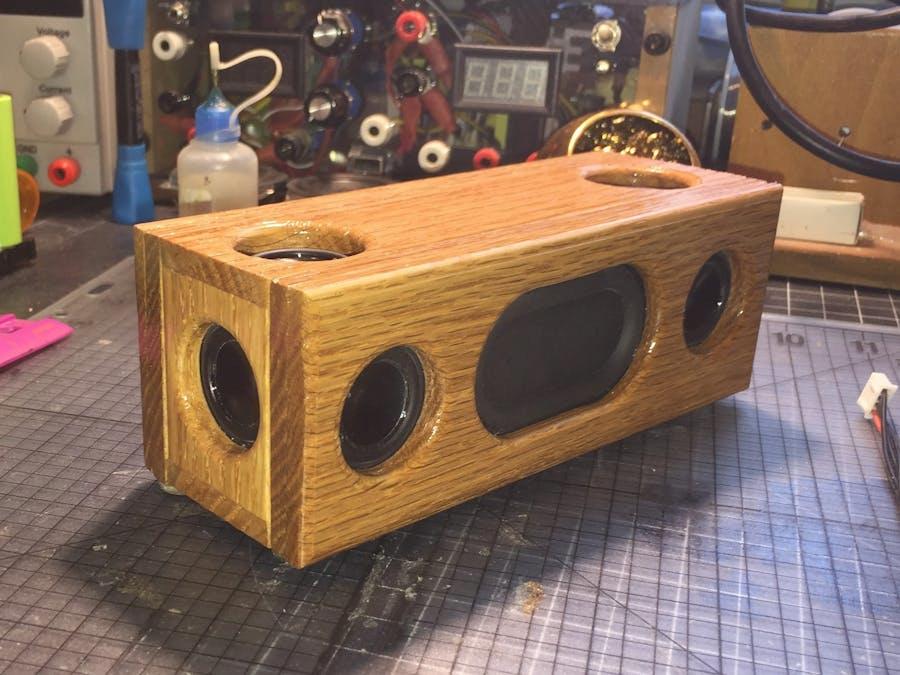

How to Make a Bluetooth Speaker: A DIY Guide

Post by Fiona

Building your own Bluetooth speaker is not only a fun and rewarding project, but it also allows you to customize the design and sound quality to suit your preferences. Whether you’re a tech enthusiast or a DIY hobbyist, making a Bluetooth speaker from scratch can be a great way to learn more about electronics while creating a useful device for personal use or as a unique gift. This guide will walk you through the reasons for building your own Bluetooth speaker, the materials and tools you’ll need, the assembly and wiring process, and how to test and troubleshoot your creation.

Why Should You Build Your Own Bluetooth Speaker?

Before diving into the technical details, let’s explore why building your own Bluetooth speaker might be a worthwhile project.

Customization: When you build your own Bluetooth speaker, you have complete control over the design, size, and features. You can choose the type of enclosure, speaker drivers, and additional features like LED lights or custom finishes.

Cost-Effective: DIY Bluetooth speakers can be more affordable than high-end commercial options. By sourcing materials and components yourself, you can build a quality speaker at a fraction of the cost.

Learning Experience: Assembling and wiring a Bluetooth speaker is a great way to learn about electronics, audio components, and soldering. It’s an educational project that can enhance your technical skills.

Satisfaction: There’s a sense of pride and satisfaction that comes from building something with your own hands. Plus, you’ll have a one-of-a-kind speaker that you can show off to friends and family.

Eco-Friendly: Building a Bluetooth speaker allows you to repurpose or recycle materials, reducing waste and promoting sustainability.

What Materials and Tools Do You Need to Make a Bluetooth Speaker?

To start building your Bluetooth speaker, you’ll need to gather the necessary materials and tools. Here’s a list of what you’ll need:

Materials:

Bluetooth Module: This is the core component that allows your speaker to connect wirelessly to devices. Popular options include the Bluetooth 4.0 audio receiver module.

Speakers/Drivers: Choose the right speakers based on the size of your enclosure and the sound quality you desire. Common sizes range from 2-inch to 4-inch drivers.

Amplifier: A small audio amplifier is needed to drive the speakers. Make sure it’s compatible with your Bluetooth module and speakers.

Enclosure: The enclosure or casing is where all the components will be housed. You can use wood, plastic, or metal, depending on your design preferences.

Power Source: A rechargeable lithium-ion battery is ideal for portability, but you can also use a power adapter for a stationary speaker.

Wiring and Connectors: You’ll need various wires, connectors, and possibly a breadboard to connect all the components.

On/Off Switch: An on/off switch to control power to your Bluetooth speaker.

Charging Module: If you’re using a rechargeable battery, a charging module like the TP4056 is necessary to recharge the battery safely.

Miscellaneous: Screws, glue, and other fasteners to secure the components in place.

Tools:

Soldering Iron and Solder: For making secure connections between wires and components.

Wire Strippers: To strip the insulation from wires.

Screwdrivers: To assemble the enclosure and secure components.

Multimeter: For testing connections and troubleshooting.

Drill and Drill Bits: If you’re customizing your enclosure, you’ll need a drill to create holes for speakers, switches, and ports.

Hot Glue Gun: To secure components inside the enclosure.

How Do You Assemble and Wire the Components?

Once you’ve gathered your materials and tools, it’s time to assemble your Bluetooth speaker. Here’s a step-by-step guide to help you through the process:

Step 1: Prepare the Enclosure

1.Measure and Mark: Start by measuring and marking where your components will go inside the enclosure. This includes the speakers, Bluetooth module, amplifier, battery, and any other components you’re using.

2.Drill Holes: Use a drill to create holes for the speakers, on/off switch, and any ports or LEDs you plan to include.

3.Mount the Components: Secure the speakers and other components inside the enclosure using screws, glue, or brackets. Ensure that everything fits snugly and securely.

Step 2: Wire the Components

1.Connect the Bluetooth Module: Wire the Bluetooth module to the amplifier. Most Bluetooth modules have output pins that connect directly to the input of the amplifier. Ensure the connections are secure.

2.Wire the Speakers: Connect the speakers to the amplifier. Make sure the polarity (+ and -) is correct for both the speakers and the amplifier to ensure proper sound output.

3.Power the System: Connect the power source to the amplifier and Bluetooth module. If you’re using a rechargeable battery, connect it to the charging module and then to the amplifier.

4.Install the On/Off Switch: Wire the on/off switch to the power source and the amplifier. This will allow you to control the power to your Bluetooth speaker.

Step 3: Final Assembly

1.Secure Wiring: Once all the components are connected, carefully organize and secure the wiring inside the enclosure. Use hot glue or cable ties to keep everything in place and prevent short circuits.

2.Close the Enclosure: After ensuring that all connections are secure and everything is properly placed, close the enclosure. Use screws or glue to seal it shut, making sure it’s sturdy and free of loose parts.

How Can You Test and Troubleshoot Your DIY Bluetooth Speaker?

After assembling your Bluetooth speaker, it’s important to test it to ensure everything is working correctly.

Power On: Turn on your Bluetooth speaker using the on/off switch. If you’re using a rechargeable battery, make sure it’s fully charged.

Pair with a Device: Enable Bluetooth on your phone or another device and search for available Bluetooth connections. Select your DIY Bluetooth speaker to pair it.

Play Audio: Once paired, play some audio to test the sound quality and volume. Check that both speakers are working and that the audio is clear.

Check All Features: If you’ve added any additional features like LEDs or volume controls, test them to ensure they’re functioning properly.

Troubleshooting Common Issues:

No Power: If the speaker doesn’t power on, check the connections to the power source and the on/off switch. Ensure the battery is charged and that there are no loose wires.

No Sound: If the speaker powers on but there’s no sound, check the connections between the Bluetooth module, amplifier, and speakers. Ensure that the speakers are wired correctly and that the amplifier is receiving power.

Poor Sound Quality: If the sound quality is poor or distorted, check the wiring for any loose or incorrect connections. Make sure the speakers are securely mounted and that the enclosure is properly sealed to prevent rattling.

Conclusion

Building your own Bluetooth speaker is a rewarding project that offers both educational value and the satisfaction of creating something unique. With the right materials, tools, and a bit of patience, you can create a custom Bluetooth speaker that meets your specific needs and preferences. Whether you’re looking to save money, learn new skills, or simply enjoy the process of DIY electronics, this guide has provided the essential steps to get you started. Happy building!

FAQs

How long does it take to build a Bluetooth speaker?

The time it takes to build a Bluetooth speaker can vary depending on your experience and the complexity of the design. For most people, the project can be completed in a few hours to a full day, including the time needed for assembling, wiring, and testing.

Can I customize the design of my Bluetooth speaker?

Yes, one of the advantages of building your own Bluetooth speaker is the ability to customize the design. You can choose the size, shape, materials, and even add additional features like LED lights or custom finishes to make your speaker truly unique.

What should I do if my Bluetooth speaker isn’t connecting properly?

If your Bluetooth speaker isn’t connecting, check that the Bluetooth module is powered on and in pairing mode. Ensure that your device’s Bluetooth is enabled and try moving closer to the speaker. If the issue persists, double-check the wiring and connections, and consider resetting the Bluetooth module.
